Potato Starch Making Machine

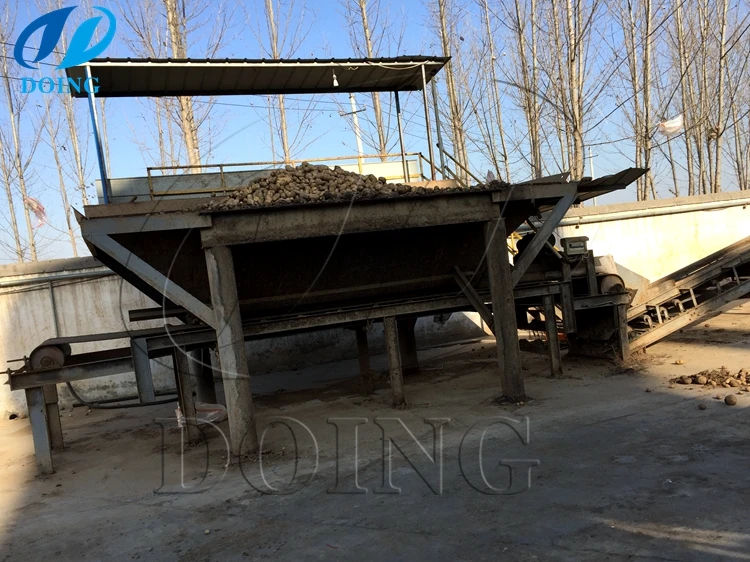

Processing description of Potato Starch Making Machine(1) Raw material receiving unit of potato starch making machine: The potato is carried besides the storage pool after weighing. Firstly, it goes through the vibration sieve for removing the stones and sand. Then the pre-cleaned potato falls on the belt conveyer and enters into the storage pool, and the rubbish will be carried away by truck.
(2) Water transport unit of potato starch making machine: The exit of the storage pool is water transportation channel. The potato will be sent by water force into de-stone machine. Meanwhile, the remaining sand and dirt will be again cleaned out by rolling and friction.

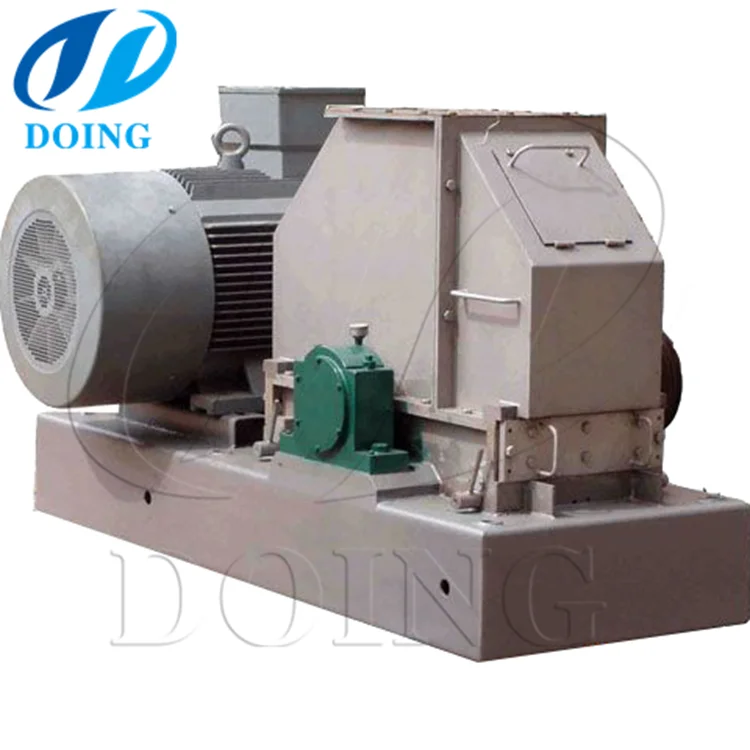

(3) De-stone and washing unit of potato starch making machine: Potato is transferred into the screw de-stone machine to be cleaned by water flow. (4) Milling unit of potato starch making machine: The milling unit is the most important step for extracting potato starch. The feeding screw combined at bottom of the storage tank pumped the clean potato into milling machine. Highly-efficient milling machine will release the starch in potato at most.

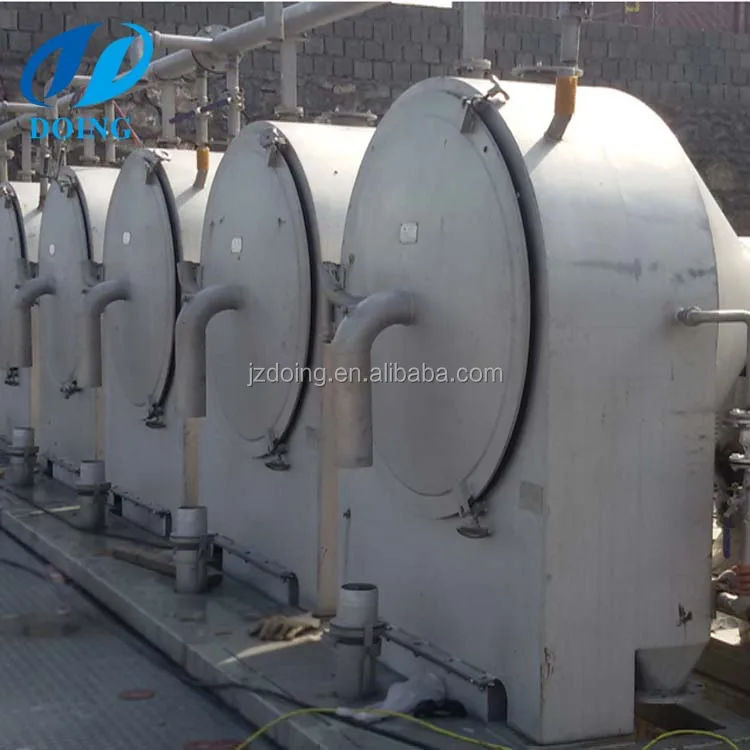

(5) De-sanding cyclone unit of potato starch making machine: After milling, the starch milk is transferred to de-sanding cyclone by fiber pump. The hydro-cyclone divide the milk into two parts: the light part which contains the mixture of starch and residue will go out from top of the cyclone, and the heavy part which contains the sand will be discharged out of the system.(6) Centrifugal extracting unit of potato starch making machine: The mixture is transferred to the 3 stage centrifugal sieves, each sieve works with a fiber pump and a de-foam pump. The mixture enters into each sieve to separate residue and starch. After 3 stages continuous washing and separation, the filtrate is sent to concentration and refining unit, and the residue is sent to the residue dewatering unit.

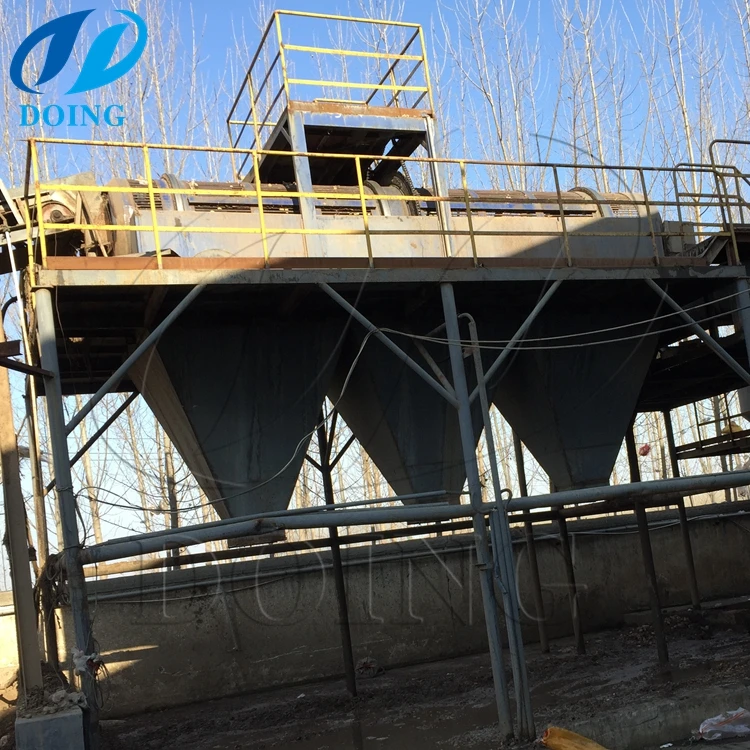

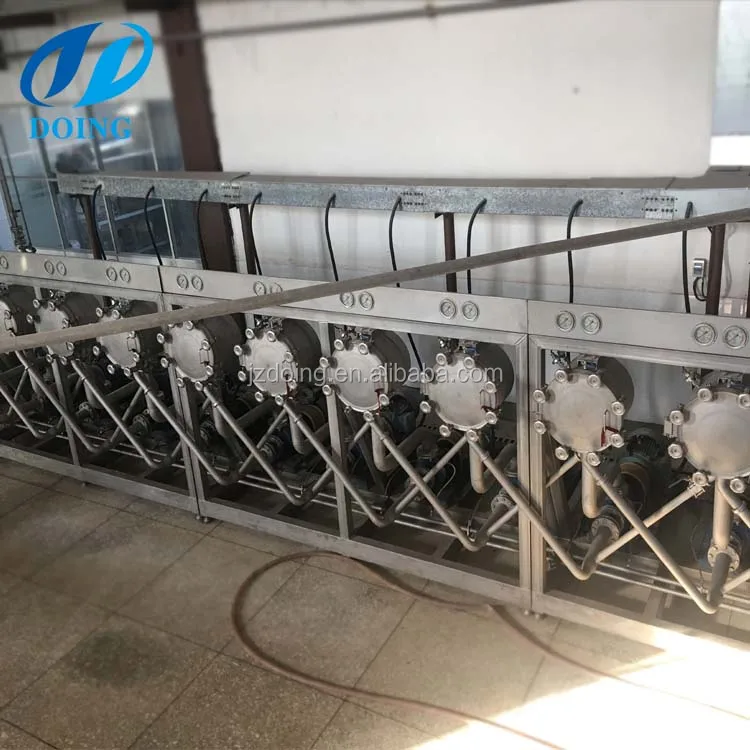

(7) Potato residue dewatering unit of potato starch making machine: The potato residue will be pumped to the centrifugal sieve for dewatering, the centrifugal sieve works like the extraction sieve. Then the screw conveyor discharges the residue out of the process, and the water will go back to the process water system.(8) Concentration and refining unit of potato starch making machineThe starch milk from centrifugal sieve goes into the 16 stages of refining hydro-cyclone, and fresh water comes into the cyclone from the end of system. Firstly, starch milk is pumped into 3 stages of concentration unit to remove the water, then the condensed starch milk enter the next 13 stages of washing unit, and the overflow enters into another 2 stages of recycle unit to recycle starch. Most of the effluent with fiber is discharged out of the process, and a little part goes back to the process water system. Finally, the condensed starch slurry is pumped into the starch slurry storage tank.

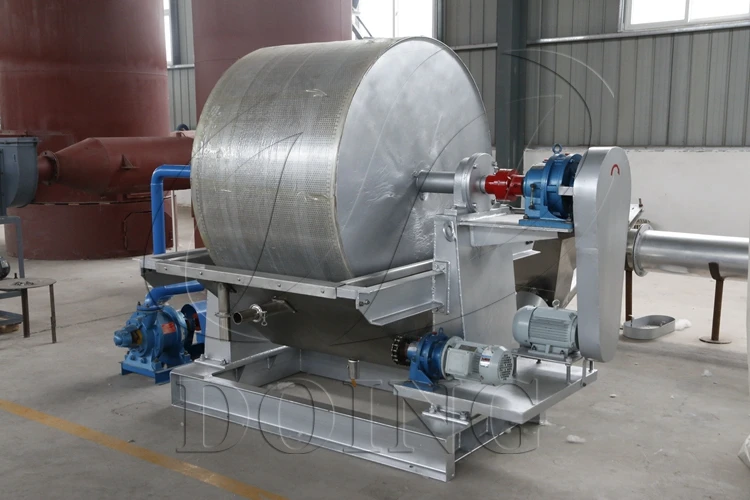

(9) Vacuum dewatering unit of potato starch making machine: The starch slurry is pumped into inlet tank of vacuum dewatering machine. Then the vacuum rotary drum will absorb the starch on the drum surface and the filtrate is transferred out of the system by filtrate pump. The filter cake on the drum will be peeled off by peeler and then transferred to the air dryer by screw conveyor.

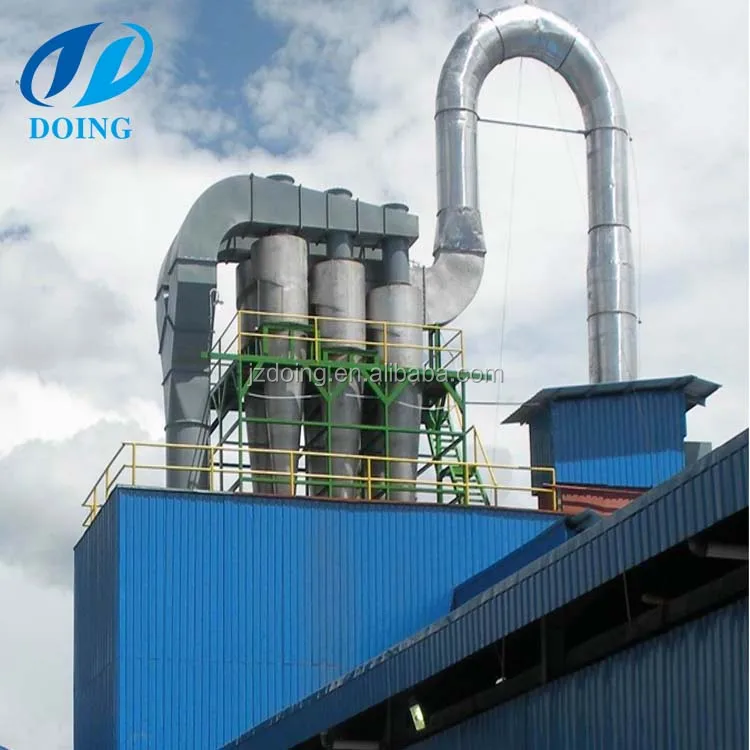

(10) Air drying unit of potato starch making machine: After dewatering process, the air dryer will dry the starch to the required moisture of the commercial starch. Then starch goes into the screw conveyor.(11) Sieving and storage unit of potato starch making machine: The starch is transferred into the vibration sieve by screw conveyor, and the sieve is used to separate the coarse and fine starch particle. Then the fine starch goes into starch tank for temporary storage.
(12) Weighing and package unit of potato starch making machine: After sieving, the fine starch goes to the auto-packager, and will be packed into 25 kg/bag.
It is all introduction of potato starch making machine showed in the above. You are welcome to leave the message to us if you want have more details.
